Aluminum Window Frame Shredder

Discarded aluminum window frames are a common source of recyclable metal in demolition projects, renovation work, window manufacturing plants, and scrap yards. Although aluminum itself has a high recycling value, waste frames are not always convenient to process. They may contain long profiles, steel screws, rubber seals, glass fragments, brackets, and other attached materials. An appropriate aluminum window frame shredder can make this type of scrap much easier to handle before further separation and recycling.

Why Scrap Aluminum Window Frames Need Size Reduction

Aluminum profiles are usually long, lightweight, and difficult to feed directly into conventional recycling equipment. Window frames can also become tangled when large quantities are stored together. Cutting them manually requires considerable labor and does not provide consistent material dimensions.

Shredding changes the physical form of the material. Long window profiles can be reduced into shorter pieces that are easier to convey, sort, and process. For recycling companies, this can improve material handling while preparing the aluminum for downstream separation and recovery.

The objective is not simply to make the smallest possible particles. In many applications, a controlled and manageable output size is more useful because it allows subsequent equipment to separate aluminum from other components more effectively.

How a Double Shaft Shredder Handles Window Frame Scrap

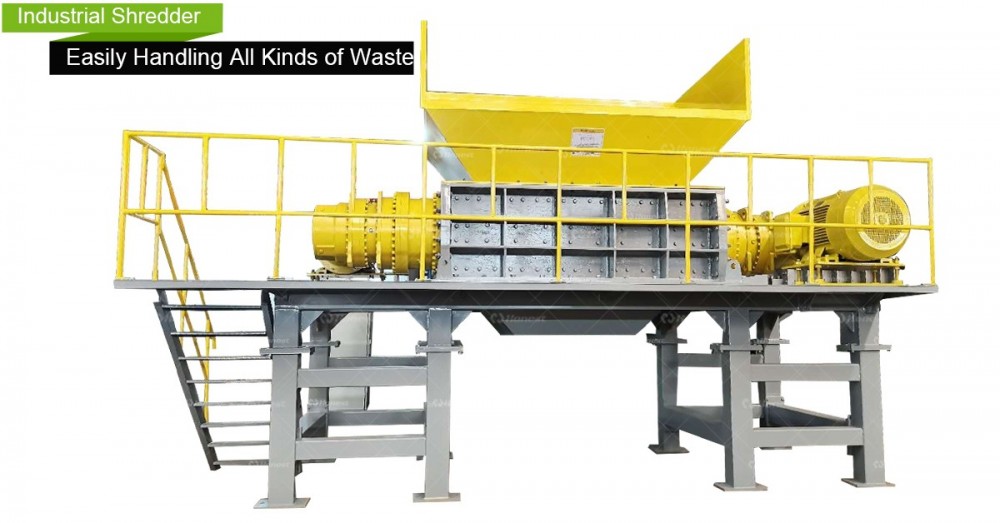

A powerful double shaft shredder is particularly suitable for bulky and irregular metal scrap because it uses two rotating shafts equipped with cutting tools. Instead of relying only on high-speed impact, the shafts pull the material into the cutting chamber and gradually tear and shear it.

This working method is useful when processing aluminum window frames with different shapes and thicknesses. Long profiles are pulled inward rather than remaining on top of the cutting chamber, while the interlocking cutters break the material into shorter sections.

The low-speed, high-torque configuration also allows the machine to deal with tough and uneven feedstock. Depending on the material composition and required capacity, the machine can be configured with different motor powers, cutter designs, and discharge specifications.

Processing More Than Just Aluminum Profiles

Real-world window frame scrap rarely consists of clean aluminum alone. During demolition or renovation, frames may arrive with rubber strips, fasteners, brackets, small steel parts, and other attachments.

This is why selecting equipment based only on the word “aluminum” can be misleading. The actual feedstock should be evaluated before choosing the shredder.

A metal scrap shredder designed for mixed and irregular materials can provide greater flexibility when a recycling facility handles different types of scrap. For example, the same shredding system may be used for aluminum profiles, light metal structures, sheet scrap, and other bulky materials, provided that their dimensions and physical properties fall within the machine's working range.

What Happens After Shredding?

Shredding is normally only one stage of an aluminum recycling process. Once the window frames have been reduced in size, the material can be transferred to magnetic separation, eddy current separation, screening, or other sorting equipment depending on the composition of the incoming scrap.

Ferrous components such as steel screws or brackets can potentially be removed by magnetic separation. Aluminum pieces can then be further classified according to the requirements of the recycling operation.

For facilities processing relatively clean aluminum frames, a simple shredding and sorting arrangement may be sufficient. For demolition waste containing several materials, a more complete recycling line may be more appropriate.
