Scrap Plastic Shredder

Scrap Plastic Shredder

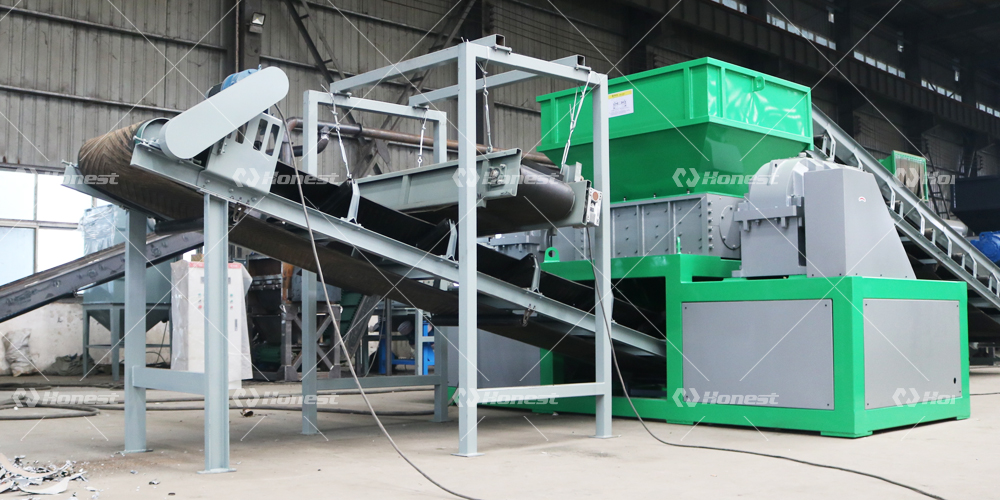

Plastic shredder consists of motors, gearboxes, feed hopper, shredder blades, shafts, lower racks, control box, etc. The number of the blades or their width respectively determines the size of the output material.

  • Series: HNDP
  • Capacity: 400-4500 Kg/H
  • Voltage: Customized
  • Blade Material: H13,SKD-11,D2,DC53 (Optional)
  • Service: 12 Months
  • Certification: CE ISO
Product Description

Plastic shredder is widely used in crushing various kinds of plastic scraps, such as plastic drum, pvc pipe, plastic film, plastic toys, plastic barrel, aluminum plastic films, plastic tray, plastic plastic pallet, ABS die materials, plastic lumps, refrigerator, washing machine, television, air conditioner and other household appliances, etc.

Scrap plastic shredder Characteristics:

1). Plastic shredder is easy to operate and easy to maintain;

2). Plastic shredder has a low speed, high torque, low noise, compact design;

3). Plastic shredder with a special material, long life, high utilization rate; knives can be exchanged easily and quickly;

4). In case the scrap metal shredder is overloaded or foreign objects are in the cutting unit, the rotor stops and moves backward automatically to prevent overfeeding and protect against damage from foreign objects.

Technical Parameters

Model

Motor Power

Capacity

Blade Quantity

Blade Diameter

Input Opening Size

Dimension L/W/H

HNDP600

11*2 Kw

500-600 Kg/H

30

Φ210×20 mm

950*700 mm

1800*850*1850 mm

HNDP800

18.5*2 Kw

800-1000 Kg/H

26

Φ210×30 mm

1200*800 mm

2800*900*2050 mm

HNDP1000

22*2 Kw

1200-1500 Kg/H

50

Φ300×20 mm

1200*950 mm

3400*1500*2200 mm

HNDP1200

30*2 kw

1500-1800 Kg/H

40

Φ300×30 mm

1500*1000 mm

3800*1600*2600 mm

HNDP1500

45*2 Kw

3000-4500 Kg/H

36

Φ400×40 mm

1500*2000 mm

4600*1700*2600 mm
Product Application
