Primary Shredder vs. Hammer Mill Crusher in Metal Lines

A common question among metal recycling operators is whether a single shredder or a standalone crusher is sufficient for processing mixed scrap metal.

In practice, relying solely on one machine type creates operational bottlenecks: a double-shaft shredder cuts material into large strips without densifying it, while feeding bulky metal directly into a high-speed hammer mill causes severe hammer wear and potential mechanical jams.

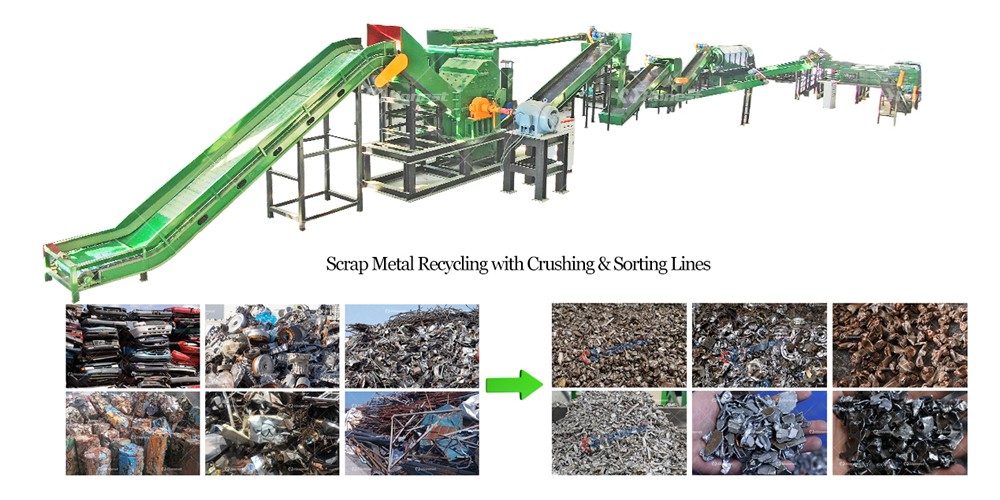

The solution is a balanced, two-stage reduction workflow integrated within a full scrap metal shredding and separation line

 The Role of the Low-Speed Double-Shaft Shredder (Stage 1)

- Operating Principle: Low rotational speed (10–30 RPM), extremely high torque.

- Function: Tearing, shearing, and opening bulky scrap (car bodies, metal drums, long structural profiles).

- Benefit: Handles oversized, irregular material effortlessly without violent impact, protecting downstream equipment.

 The Role of the High-Speed Hammer Mill Crusher (Stage 2)

- Operating Principle: High rotational speed (600–1000 RPM) with heavy alloy steel hammers hitting material against anvil grates.

- Function: Fine size reduction, balling/pelletizing, and surface cleaning.

- Benefit: Knocks off paint, rust, and adhering rubber while compacting thin sheets into high-density furnace-ready pellets.

 Synergistic Performance Benefits

Combining primary low-speed shearing with secondary high-speed impact crushing provides major benefits:

- Reduces Wear and Tear: Extends hammer mill liner and hammer lifespan by 30-50%.

- Maximizes Separation Efficiency: Completely detaches non-ferrous attachments (e.g., copper wires inside iron housings) before magnetic and eddy current sorting.

- Ensures Stable Continuous Operation: Keeps material flow uniform and energy consumption optimized across the entire plant.
