Why Copper Wire Shredding Demands High-Torque Mechanical Processing

Recycling insulated cables and harness wires presents a distinct mechanical challenge: stripping thin copper strands while cleanly dislodging vulcanized rubber, cross-linked polyethylene (XLPE), and PVC jacketing.

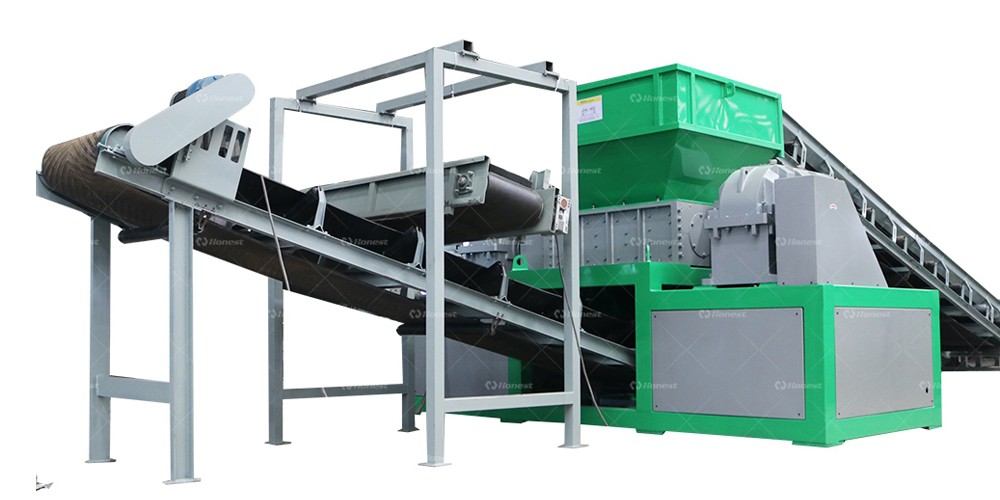

Traditional stripping tools fail at volume. An industrial copper wire shredding machine serves as the initial, high-throughput reduction stage in wire recycling plants, cutting tangled electrical bundles into uniform 10–20 mm segments ready for downline separation.

Core Processing Stages: From Scrap Cable to Pure Copper Granules

1. Primary Shear & Size Reduction: Dual-shaft or single-shaft rotary knives cut tangled harness bundles, preventing rotor blockages and wire winding.

2. Granulation & Liberating Copper: A secondary high-speed granulator shears cut segments down to 1–3 mm, freeing the metallic copper from the thermoplastic casing without melting the insulation.

3. Pneumatic & Specific Gravity Separation: Airflow vibratory tables utilize the density difference between copper and plastic to recover copper chips at purity levels exceeding 99.5%.

4. Protecting Cutting Blades from Abrasive Wear: Copper creates significant friction, while trace contaminants (sand, steel strands, connectors) can chip tool steels.

 Modern shredders use counter-sunk, rotatable indexable square blades manufactured from hardened alloy steel (58–60 HRC). When one edge dulls, the operator turns the blade 90 degrees, multiplying blade life fourfold before requiring regrinding.
