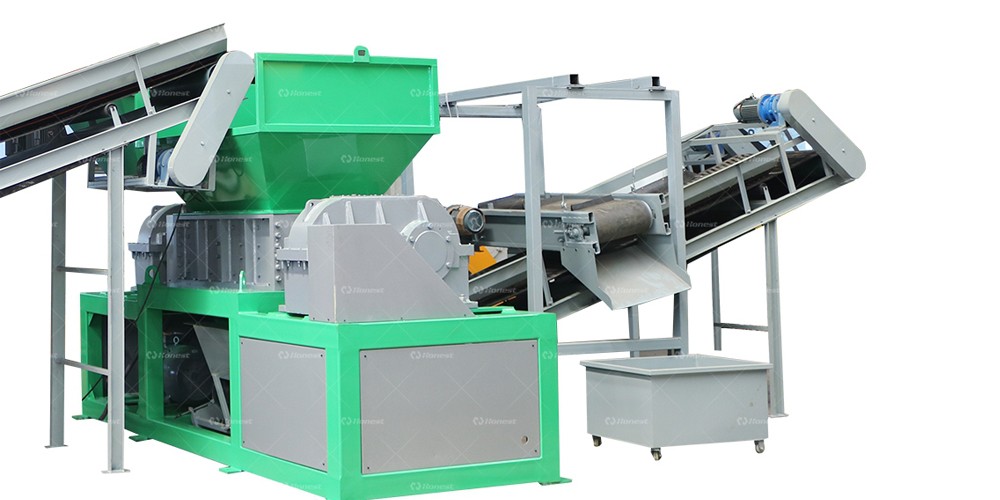

Cable Shredder Machine High-Output Scrap Wire Liberation & Stripping

Mechanical Size Reduction for Scrap Cable and Wire Recycling

Scrap copper and aluminum wires represent one of the highest-value sectors in the scrap metal industry. However, the true value of electrical scrap can only be unlocked when the conductive core is fully liberated from its outer insulation layer (such as PVC, cross-linked polyethylene, Teflon, or armored lead). A dedicated cable shredder machine functions as the primary shear stage in automated cable granulating plants.

Preventing Rotor Entanglement and Friction Melting

Processing flexible, ductile wires presents distinct hazards compared to rigid plastics or brittle minerals:

Anti-Tangle Rotor Architecture: Stranded wire and thin automotive harness bundles tend to wind tightly around high-speed shafts, causing motor lockups, bearing damage, and severe friction fires. A cable shredder utilizes low-speed, high-shear rotary cutters that cleanly snip the wires into 15 to 30 mm segments before wrapping can occur.

Thermal Control: If cutting knives are dull, the frictional heat generated by slicing ductile copper will melt PVC insulation into a gummy paste, sticking insulation directly onto copper conductors. Cable shredders maintain razor-sharp counter-knives with minimal tolerance gaps to ensure cold, clean cutting without soft plastic contamination.

Knife Metallurgy and Hardness Standards

Scrap cables frequently conceal hidden contaminants: hardened steel core wires (as found in ACSR power cables), brass terminal connectors, and fine abrasive construction dirt.

To withstand this continuous mechanical stress, cable shredder blades are precision-machined from high-carbon, high-chromium tool steels (e.g., DIN 1.2379 or D2 alloy), heat-treated to an operational hardness of 58 to 60 HRC. The blades feature modular, rotatable profiles that allow processing yards to index cutting edges multiple times before replacement.

Preparing Feedstock for Downstream Separation

The coarse segments produced by the cable shredder flow straight to downline processing: an in-line magnetic drum extracts any ferrous steel strands or harness brackets, followed by a secondary fine granulator and an electrostatic or dry-density vibrating air table that separates clean, 99.8% pure copper chops from the plastic fluff.
